Structural · S-8PJG5

Metal Roof Deck and Steel Beam Connection at Glazing

Materials

Steel Cold-formed Steel Glass / Glazing Metal (misc.)

Elements

Beams Windows Roofs Decks Arches Bracing

Connections

Bracing Connection

About this detail

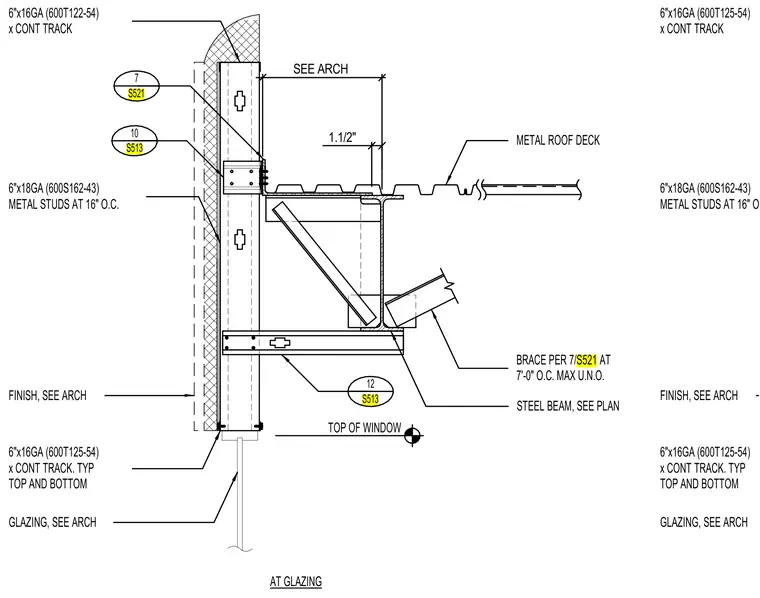

A structural steel beam supports a metal roof deck adjacent to an exterior glazing head, with additional lateral bracing configured per plan at seven feet on center maximum unless noted otherwise. Cold-formed steel metal studs measuring six inches by eighteen gauge (600S162-43) spaced at sixteen inches on center frame the wall, topped and bottomed with six-inch by sixteen-gauge (600T125-54) continuous tracks. Glazing and exterior finishes are coordinated per architectural drawings.
