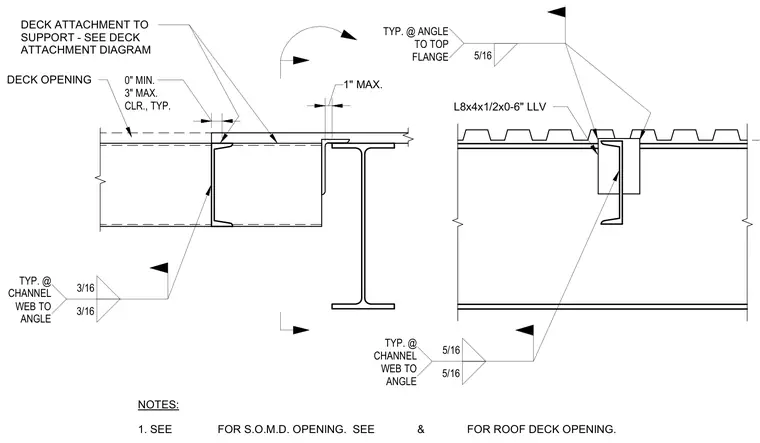

A channel section connects to a structural steel beam supporting a metal roof deck opening. An L8x4x1/2 angle welded with five-sixteenths inch fillets secures the channel web to the support angle. The angle leg attaches to the top flange of the beam with a five-sixteenths inch fillet weld. Clearances at the deck opening maintain a zero to three inch typical range with a one inch maximum dimension.
L8x4x1/2x0-6" LLV DECK ATTACHMENT TO SUPPORT - SEE DECK ATTACHMENT DIAGRAM NOTES: 1. SEE FOR S.O.M.D. OPENING. SEE & FOR ROOF DECK OPENING. 1" MAX. DECK OPENING 0" MIN. 3" MAX. CLR., TYP. 5/16 TYP. @ ANGLE TO TOP FLANGE 5/16 5/16 TYP. @ CHANNEL WEB TO ANGLE 3/16 3/16 TYP. @ CHANNEL WEB TO ANGLE
