Structural · S-8PFDJ

Moment Connection Details (For Non-Frames)

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Column Bolted Connection

About this detail

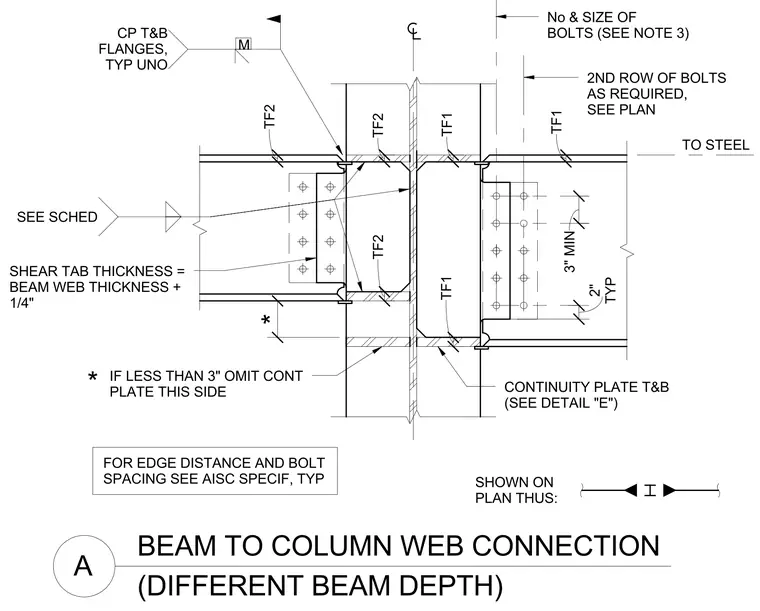

This structural steel detail shows a beam-to-column web connection featuring different beam depths on each side of the column web. A shear tab connects the beam web, with its thickness sized to the beam web thickness plus one-quarter inch. Continuity plates are welded to the top and bottom flanges of the column, with a note to omit the continuity plate on one side if the dimension is less than three inches. Flange connections utilize complete joint penetration welds typically unless noted otherwise. Bolt counts, sizes, edge distances, and spacings follow the AISC specification and project framing plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
