Structural · S-8PAZF

Bolted Connection

Elements

Connections

About this detail

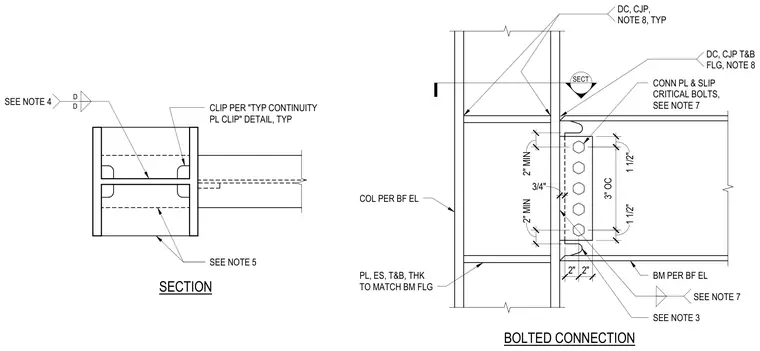

A structural steel beam connects to a wide-flange column using a bolted connection plate and complete joint penetration welds at the top and bottom flanges. Continuity plates matching the beam flange thickness are welded to the column web with clipped corners. Slip-critical bolts secure the connection plate to the beam web at three inches on center spacing. Additional weld and connection requirements are detailed per project notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
