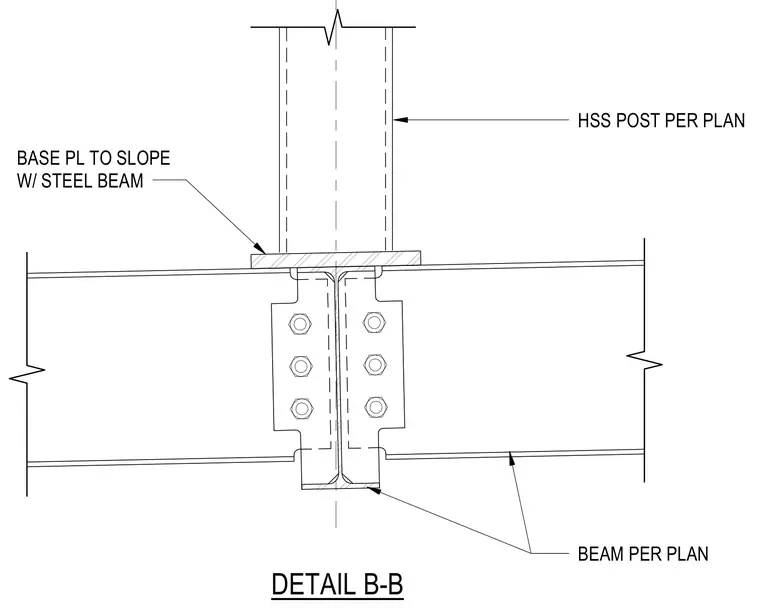

An HSS post sized per plan connects via a base plate sloped to match the supporting steel beam below. Two parallel beams sized per plan tie into the connection using bolted shear tabs on each side of the web. The base plate rests directly on the top flange of the supporting steel beam.
