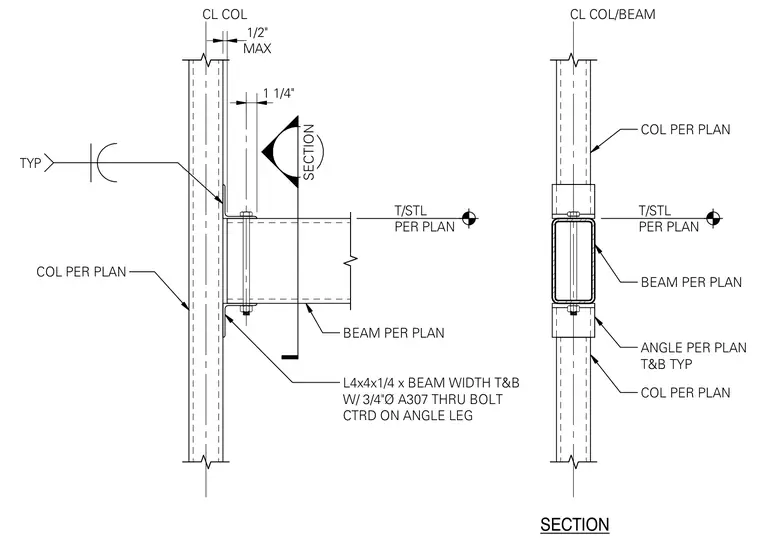

An HSS beam connects to an HSS column using L4x4x1/4 structural angles placed at the top and bottom of the beam, sized to the beam width. Three-quarter-inch diameter A307 through-bolts centered on the angle leg secure the assembly through the HSS column. A maximum one-half-inch clearance is maintained at the column centerline, with the vertical angle leg offset one and one-quarter inches from the centerline. The column and beam sizes are specified per plan.
SECTION SECTION TYP COL PER PLAN T/STL PER PLAN BEAM PER PLAN L4x4x1/4 x BEAM WIDTH T&B W/ 3/4"Ø A307 THRU BOLT CTRD ON ANGLE LEG CL COL 1 1/4" CL COL/BEAM T/STL PER PLAN BEAM PER PLAN COL PER PLAN COL PER PLAN ANGLE PER PLAN T&B TYP MAX 1/2" W O > n^y + * <>
