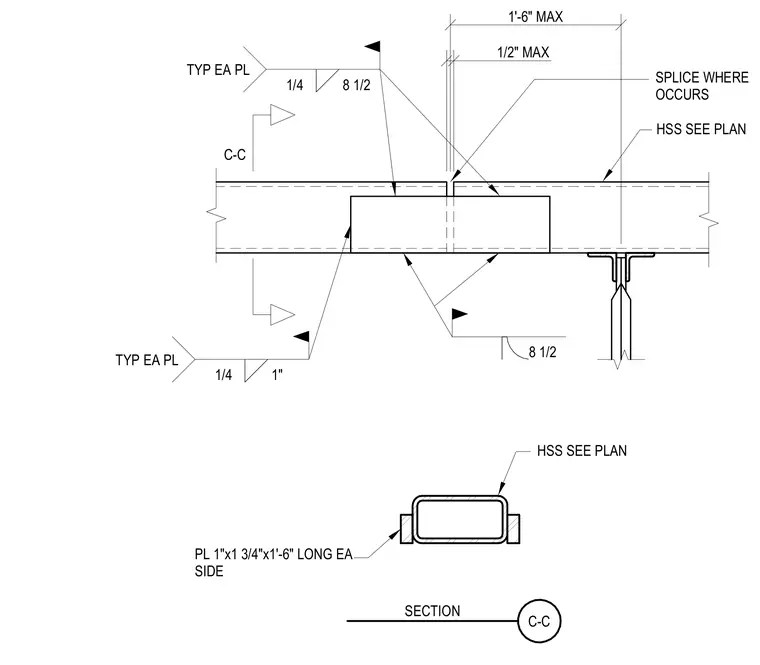

Two aligned hollow structural section members join end-to-end with a maximum one-half inch gap at the splice location. Two one-inch thick by one and three-quarter inch wide by one foot six inch long steel plates weld to opposite sides of the members. Each plate connects with quarter-inch fillet welds of specified lengths on each side.
1/2" MAX 1'-6" MAX C-C SECTION SPLICE WHERE OCCURS HSS SEE PLAN HSS SEE PLAN PL 1"x1 3/4"x1'-6" LONG EA SIDE TYP EA PL TYP EA PL C-C 1/4 8 1/2 1/4 1" 8 1/2
