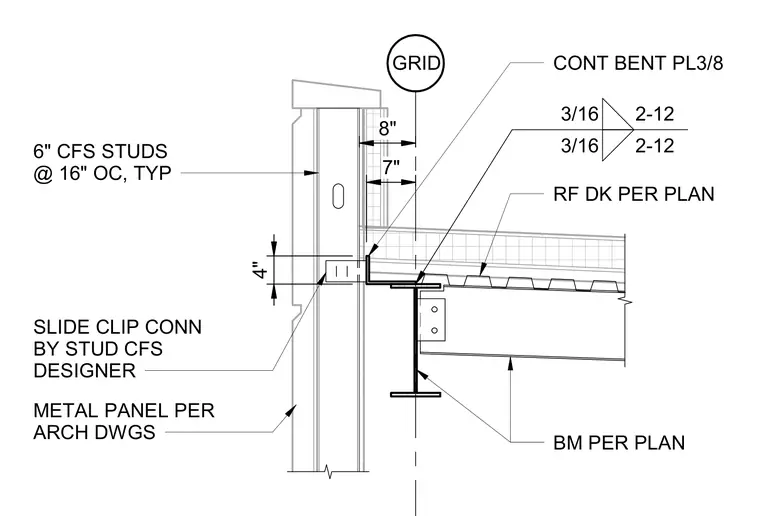

Six-inch cold-formed steel studs spaced at sixteen inches on center connect to the structure using a slide clip connection designed by the cold-formed steel designer. The roof deck rests upon a structural steel beam sized per plan and is detailed with a continuous three-eighths-inch bent plate welded with three-sixteenths-inch fillet welds. Exterior metal panels are provided per architectural drawings.
3/16 2-12 3/16 2-12 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY STUD CFS DESIGNER GRID 4" 8" 7"
