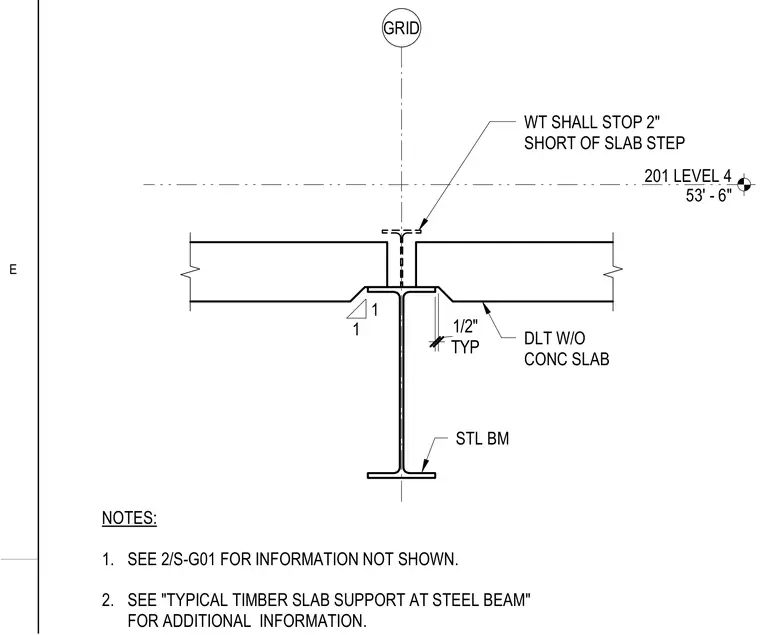

A concrete slab step bears on a steel beam where a WT profile or structural steel shape stops two inches short of the slab step. The assembly includes a structural steel beam, concrete slab, and a slab step condition located at level four, elevation 53 feet 6 inches.
201 LEVEL 4 53' - 6" GRID TYP 1/2" STL BM 1 1 NOTES: 1. SEE 2/S-G01 FOR INFORMATION NOT SHOWN. 2. SEE "TYPICAL TIMBER SLAB SUPPORT AT STEEL BEAM" FOR ADDITIONAL INFORMATION. DLT W/O CONC SLAB WT SHALL STOP 2" SHORT OF SLAB STEP E
