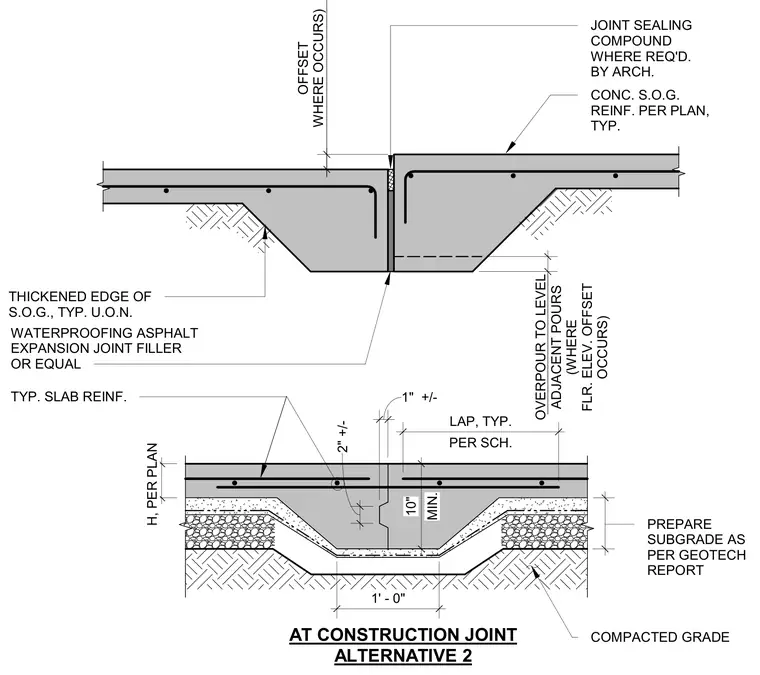

An alternative slab on grade construction joint is supported on compacted grade prepared per the geotechnical report. The concrete slab on grade features typical reinforcement per plan and a minimum ten inch thickened edge at the joint. An asphalt expansion joint filler or equal is placed vertically between the slab pours, topped with a joint sealing compound where required by the architect. An overpour is utilized to level adjacent pours where a floor elevation offset occurs.
AT CONSTRUCTION JOINT ALTERNATIVE 2 COMPACTED GRADE TYP. SLAB REINF. H, PER PLAN 1' - 0" 1" +/- 2" +/- PER SCH. LAP, TYP. MIN. 10" THICKENED EDGE OF S.O.G., TYP. U.O.N. CONC. S.O.G. REINF. PER PLAN, TYP. WATERPROOFING ASPHALT EXPANSION JOINT FILLER OR EQUAL OVERPOUR TO LEVEL ADJACENT POURS (WHERE FLR. ELEV. OFFSET OCCURS) OFFSET WHERE OCCURS) JOINT SEALING COMPOUND WHERE REQ'D. BY ARCH. PREPARE SUBGRADE AS PER GEOTECH REPORT
