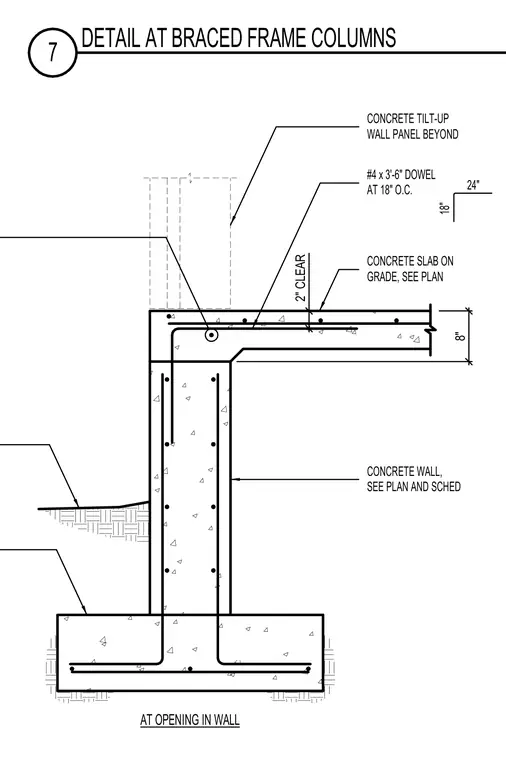

A concrete stem wall bears on a continuous spread footing, reinforced with vertical and horizontal rebar. An eight-inch thick concrete slab on grade ties into the stem wall with number 4 dowels at eighteen inches on center. A concrete tilt-up wall panel is positioned beyond at an opening in the wall, maintaining a two-inch clearance.
7 DETAIL AT BRACED FRAME COLUMNS CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE TILT-UP WALL PANEL BEYOND AT OPENING IN WALL 24" 18" #4 x 3'-6" DOWEL AT 18" O.C. CONCRETE WALL, SEE PLAN AND SCHED 8" 2" CLEAR
