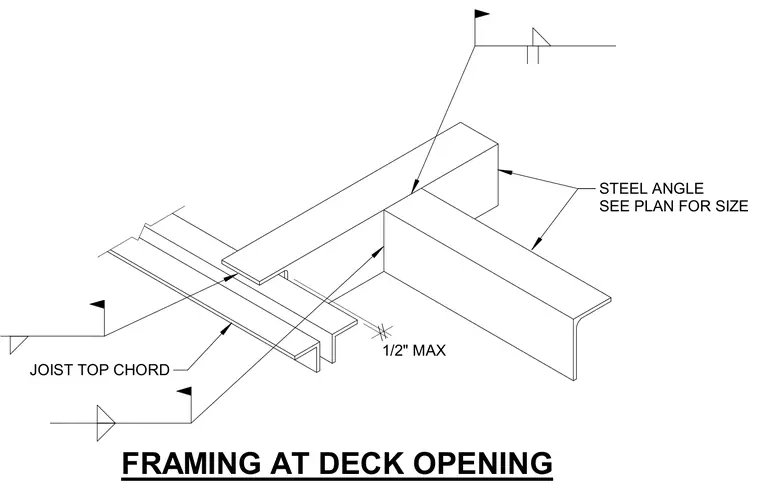

A steel angle framing member connects to a perpendicular steel angle with a maximum one-half inch clearance gap at the joist top chord. Steel angles are sized per plan. Field weld symbols specify connections between the framing members and the joist chord.
