Structural · S-8NGX2

BRB Top Joint Bolted Connection - Strong Axis

Materials

Elements

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection Timber / Mass-Timber Connection

About this detail

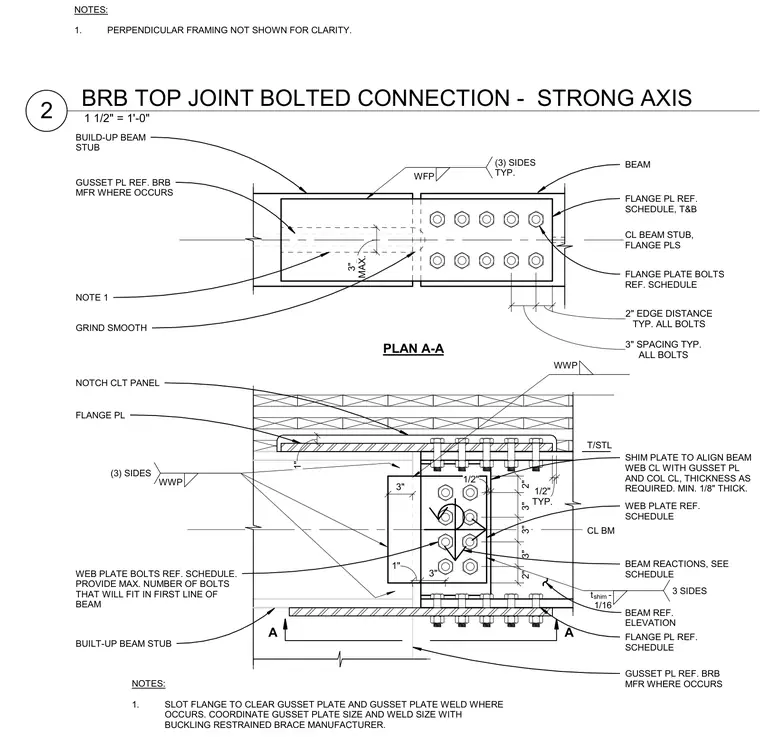

A buckling restrained brace top joint bolted connection oriented to the strong axis interfaces a built-up beam stub with a beam and cross-laminated timber panel. The assembly features top and bottom flange plates bolted with a three-inch spacing and two-inch edge distance, supplemented by a web plate and a shim plate to align the beam web centerline with the gusset plate and column centerline. A shim plate of one-sixteenth inch minimum thickness is provided as required, and the built-up beam stub flange is slotted to clear the gusset plate and its weld where it occurs. Welds are specified on three sides typically around plate connections, with the gusset plate sized and coordinated per the buckling restrained brace manufacturer requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
