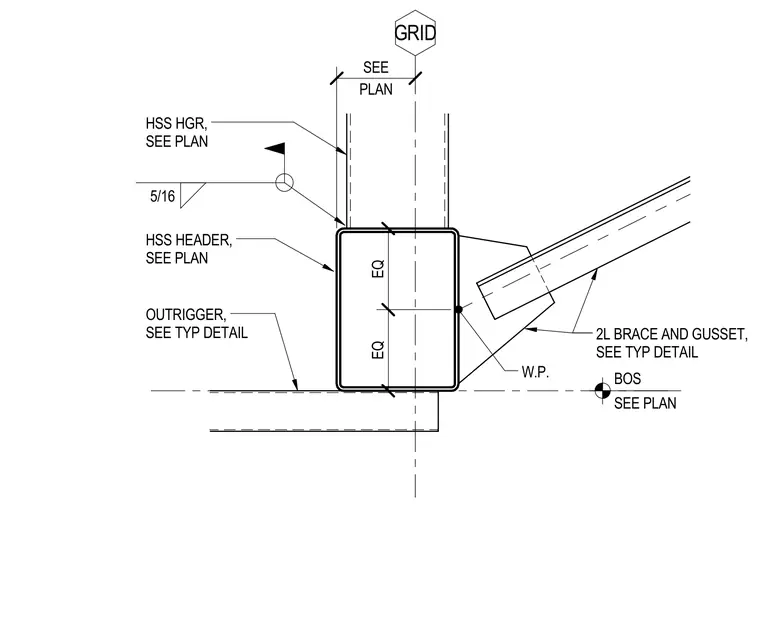

A canopy connection frames into a hollow structural section header with a five-sixteenths inch fillet weld. A double-angle brace and gusset plate connect to the HSS header at a work point located relative to grid lines and bottom of steel elevations as specified on the plan. An outrigger framing member ties into the bottom of the HSS header per typical detail requirements.
BOS SEE PLAN GRID HSS HEADER, SEE PLAN HSS HGR, SEE PLAN 5/16 2L BRACE AND GUSSET, SEE TYP DETAIL OUTRIGGER, SEE TYP DETAIL PLAN SEE EQ EQ W.P.
