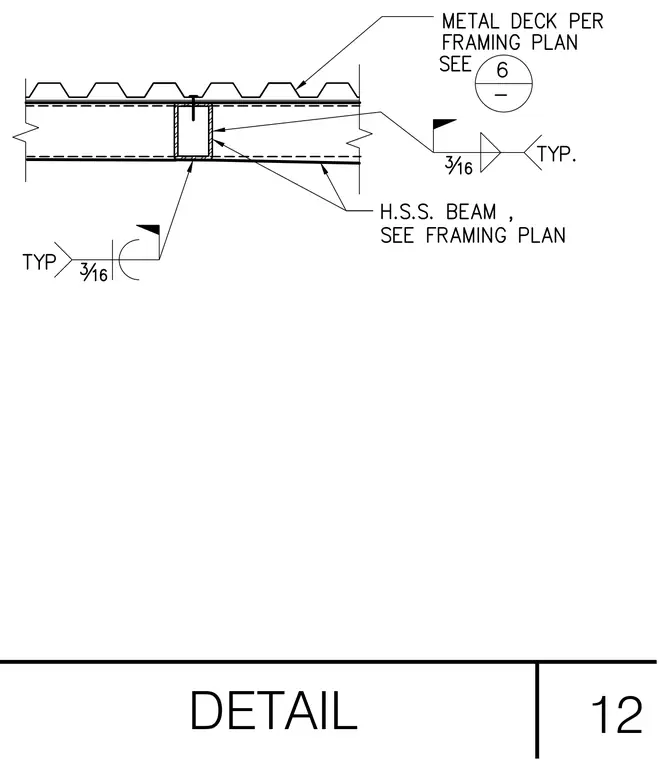

Metal deck is supported by a hollow structural section beam sized per the framing plan and secured with a mechanical fastener. A three-sixteenths inch typical fillet weld connects the assembly with a field weld symbol indicated. The metal deck layout follows the framing plan requirements.
