Structural · S-8N5G7

Footing Poured Against Earth

Materials

Elements

Floors / Slabs Foundations / Footings Site / Paving

About this detail

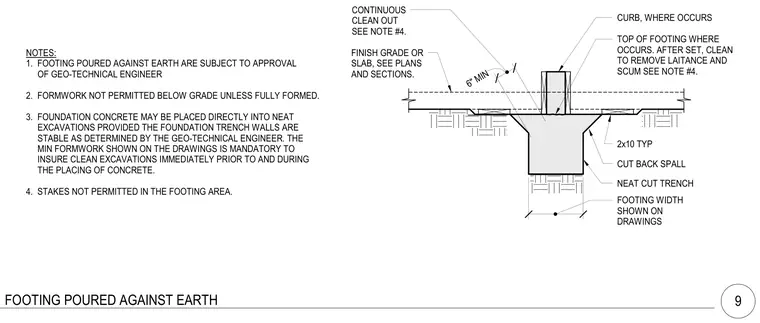

A structural foundation footing is poured directly against earth within a neat cut trench, supporting a curb above. The assembly incorporates a typical 2x10 lumber layout and a continuous cleanout, with finish grade or slab elevations indicated per plans and sections. Footings poured against earth require geotechnical engineer approval, and formwork is restricted below grade unless fully formed. Foundation concrete may be placed directly into neat excavations provided trench walls are stable, while stakes are strictly prohibited in the footing area.
