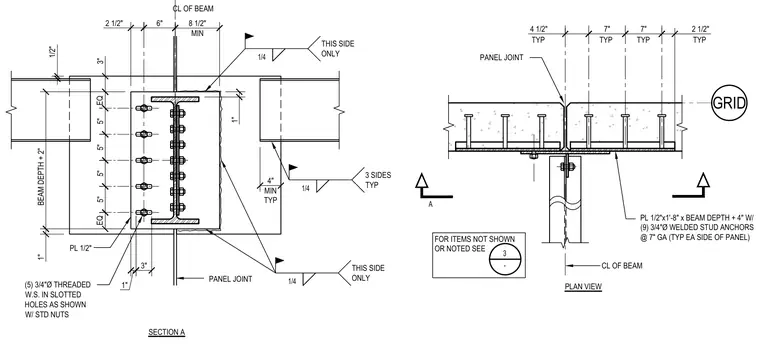

A steel beam connects across a panel joint using a half-inch thick plate measuring one foot eight inches by the beam depth plus four inches. The connection incorporates nine three-quarter-inch diameter welded stud anchors at a seven-inch gauge on each side of the panel. Five three-quarter-inch diameter threaded studs are placed in slotted holes with standard nuts. Fillet welds of one-quarter-inch size are applied to three sides typically and specified for one side only at designated locations.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) FOR ITEMS NOT SHOWN OR NOTED SEE TYP TYP TYP TYP CL OF BEAM 3" EQ 5" 5" EQ 1" 2 1/2" 6" 8 1/2" MIN 1/4 PL 1/2" PANEL JOINT PLAN VIEW SECTION A A 5" 5" BEAM DEPTH + 2" 1/4 THIS SIDE ONLY 1" 1" (5) 3/4"Ø THREADED W.S. IN SLOTTED HOLES AS SHOWN W/ STD NUTS 3" 1/2" THIS SIDE ONLY 4" MIN TYP 1/4 3 SIDES TYP 3 -
