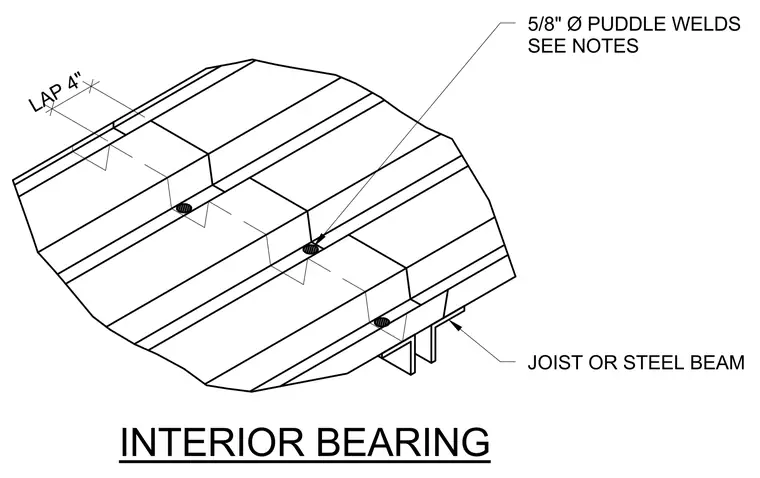

An interior steel deck bears directly upon a steel joist or steel beam at intermediate supports. The metal deck panels feature a four-inch lap where adjacent sheets overlap. Five-eighth-inch diameter puddle welds secure the deck to the supporting structural member per project notes.
