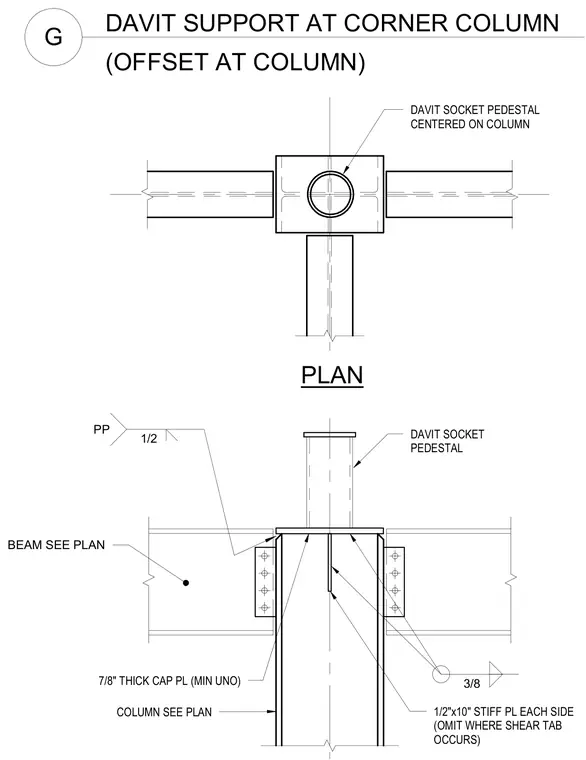

A structural steel davit socket pedestal is centered on a column with a 7/8-inch thick cap plate welded to the top of the column. A 1/2-inch by 10-inch stiffener plate is provided on each side, omitted where a shear tab occurs. Beams frame into the column flanges with shear tab connections. A 1/2-inch fillet weld secures the pedestal assembly.
PLAN 7/8" THICK CAP PL (MIN UNO) COLUMN SEE PLAN BEAM SEE PLAN 1/2"x10" STIFF PL EACH SIDE (OMIT WHERE SHEAR TAB OCCURS) DAVIT SOCKET PEDESTAL DAVIT SOCKET PEDESTAL CENTERED ON COLUMN DAVIT SUPPORT AT CORNER COLUMN G (OFFSET AT COLUMN) 3/8 1/2 PP
