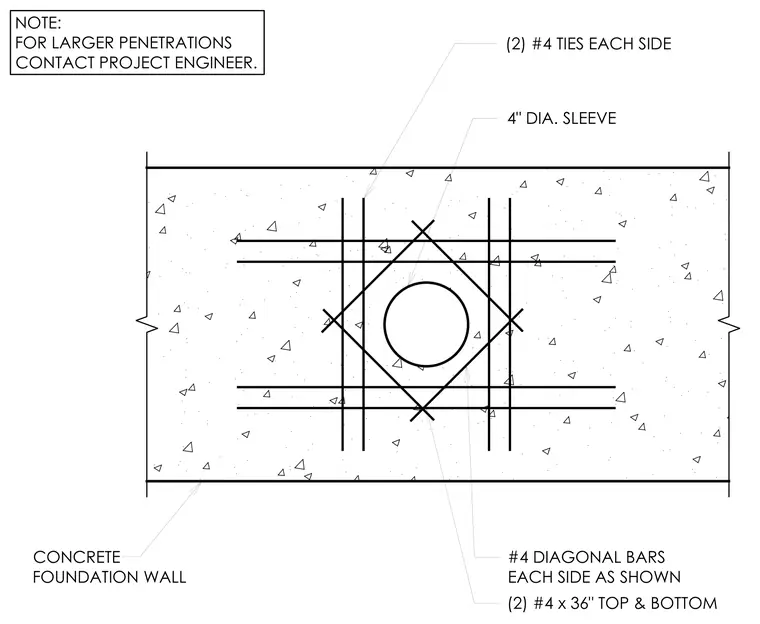

A four-inch diameter sleeve passes through a concrete foundation wall, framed by reinforcing steel to distribute loads around the opening. Two number-four bars measuring thirty-six inches in length are placed at the top and bottom of the penetration. Number-four diagonal bars and two number-four ties are positioned on each side of the opening as shown. For larger penetrations, the project engineer must be contacted for specific design instructions.
#4 DIAGONAL BARS EACH SIDE AS SHOWN (2) #4 x 36" TOP & BOTTOM 4" DIA. SLEEVE (2) #4 TIES EACH SIDE CONCRETE FOUNDATION WALL NOTE: FOR LARGER PENETRATIONS CONTACT PROJECT ENGINEER. A A ■ ■ is. . A is •' A LA A is A • is A A ■ A IS A - ¥ 4 IS A 4 • A A 4 4 ■ A is . A A A is A' A A A — ■ ■ A L A4
