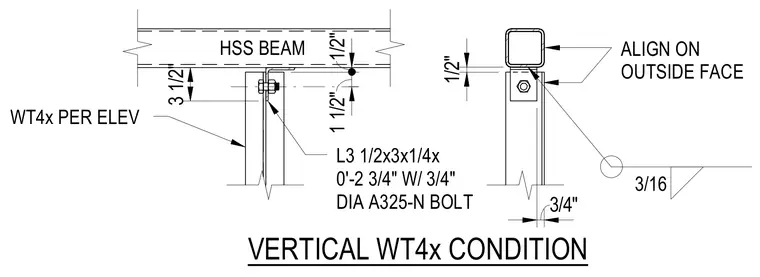

A vertical WT4x section connects to an HSS beam with a 3 1/2 inch by 3 inch by 1/4 inch angle measuring zero feet two and three-quarters inches long. The connection is secured using a three-quarter-inch diameter A325-N bolt and a three-sixteenth-inch fillet weld. The members align on the outside face.
HSS BEAM WT4x PER ELEV L3 1/2x3x1/4x 0'-2 3/4" W/ 3/4" DIA A325-N BOLT 1/2" 3/16 VERTICAL WT4x CONDITION ALIGN ON OUTSIDE FACE 3 1/2" 1 1/2" 1/2" 3/4"
