Structural · S-8MESV

W8 and W10 Full Depth Connection Alternate

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

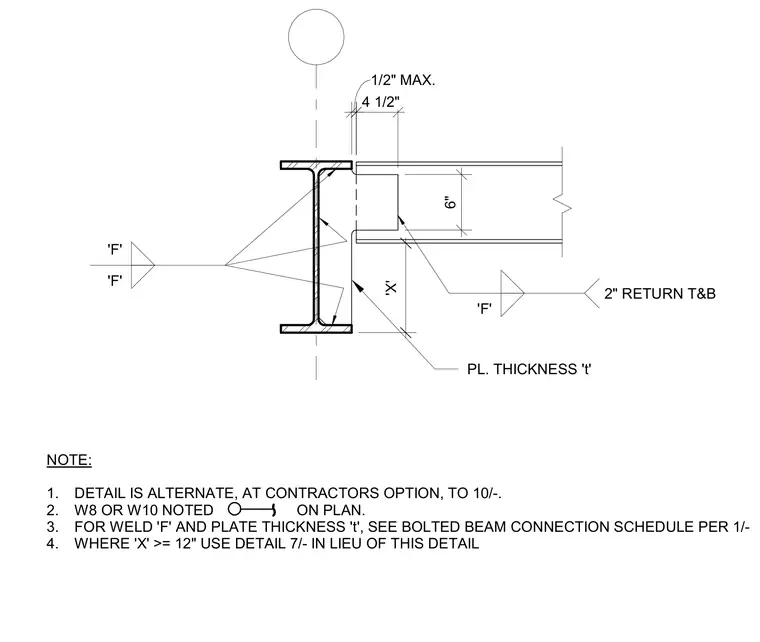

An alternate full-depth connection detail connects a W8 or W10 steel beam to a supporting member using a plate of thickness t welded with a two-inch return at the top and bottom. The beam web is recessed with a six-inch cope dimension, maintaining a maximum clearance of one-half inch from the support face. Weld size F and plate thickness t are determined from the connection schedule, while dimension X determines applicability against alternative details. Four general notes outline contractor options, schedule references, and dimensional limits.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
