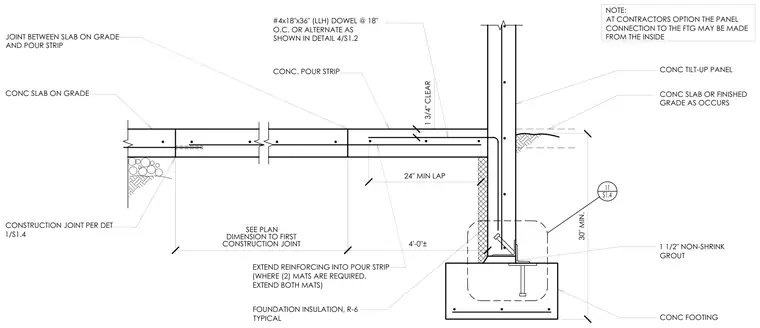

A concrete slab-on-grade, a concrete pour strip, and a concrete tilt-up wall panel interface at a concrete footing. The slab features a construction joint and extends reinforcing into the pour strip with number four dowels at eighteen inches on center, maintaining a one and three-quarter inch clear dimension. The tilt-up panel connects to the footing with non-shrine grout and embedded anchor hardware, with foundation insulation rated at R-six placed vertically against the footing edge. A twenty-four inch minimum lap splice is provided for the reinforcement, and the contractor has the option to make the panel connection to the footing from the inside.
JOINT BETWEEN SLAB ON GRADE AND POUR STRIP CONC SLAB ON GRADE CONSTRUCTION JOINT PER DET 1/S1.4 SEE PLAN DIMENSION TO FIRST CONSTRUCTION JOINT 1 3/4" CLEAR EXTEND REINFORCING INTO POUR STRIP (WHERE (2) MATS ARE REQUIRED, EXTEND BOTH MATS) 11 S1.4 CONC SLAB OR FINISHED GRADE AS OCCURS CONC. POUR STRIP #4x18"x36" (LLH) DOWEL @ 18" O.C. OR ALTERNATE AS SHOWN IN DETAIL 4/S1.2 NOTE: AT CONTRACTORS OPTION THE PANEL CONNECTION TO THE FTG MAY BE MADE FROM THE INSIDE CONC TILT-UP PANEL CONC FOOTING 30" MIN. 4'-0"± 1 1/2" NON-SHRINK GROUT 24" MIN LAP FOUNDATION INSULATION, R-6 TYPICAL
