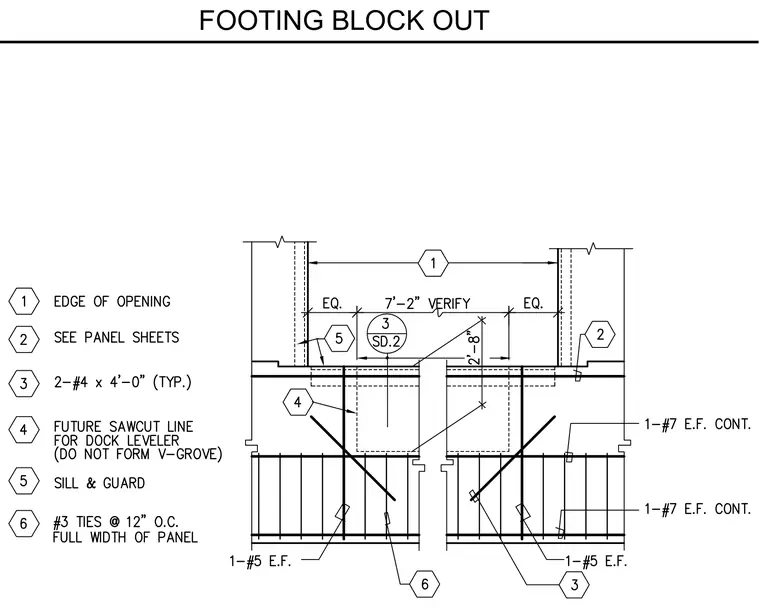

A footing block out occurs within a concrete wall assembly featuring a seven-foot-two-inch opening verified in the field. Continuous reinforcing includes one number seven bar each face continuously at the top and bottom, supplemented by number five bars each face and number four bars measuring four feet long typically at the corners. A future sawcut line for a dock leveler is indicated without forming a V-groove. Vertical confinement is provided by number three ties spaced at twelve inches on center across the full width of the panel.
