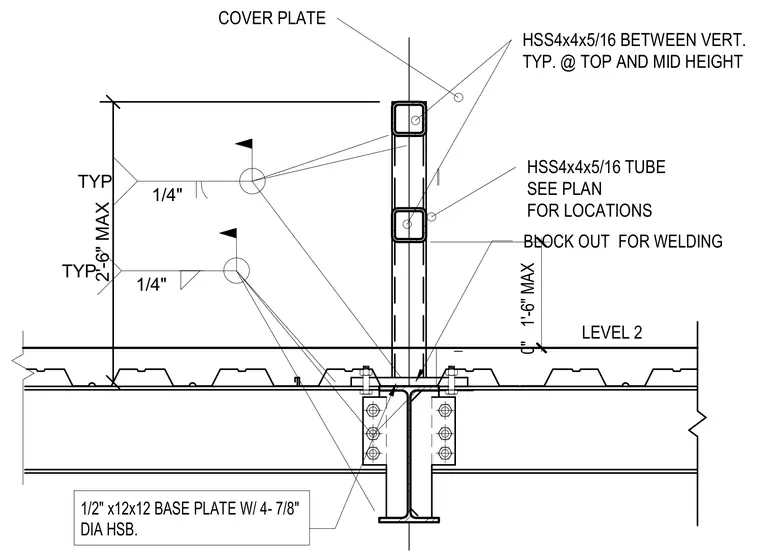

An HSS4x4x5/16 hollow structural section tube connects to a structural steel beam at Level 2 using a one-half-inch by 12-inch by 12-inch base plate secured with four 7/8-inch diameter high-strength bolts. Horizontal HSS4x4x5/16 tubes tie into the vertical member at the top and mid-height with quarter-inch fillet welds and block outs provided for welding. The vertical tube features a cover plate welded with quarter-inch welds typically at the top and mid-height locations.
2'-6" MAX LEVEL 2 HSS4x4x5/16 TUBE SEE PLAN FOR LOCATIONS HSS4x4x5/16 BETWEEN VERT. TYP. @ TOP AND MID HEIGHT COVER PLATE 1/4" TYP BLOCK OUT FOR WELDING 1/4" TYP 0" 1'-6" MAX 1/2" x12x12 BASE PLATE W/ 4- 7/8" DIA HSB.
