Structural · S-8KGDH

HSS Infill Shear Collector Between Joists

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection

About this detail

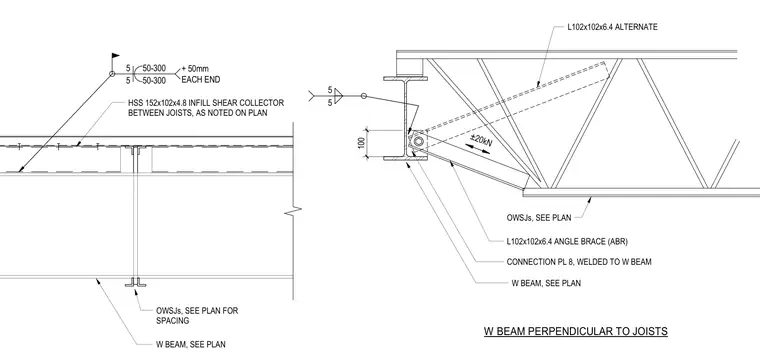

An HSS 152x102x4.8 hollow structural section serves as an infill shear collector positioned between open web steel joists spaced per plan. The collector frames into a wide-flange beam perpendicular to the joists using an eight-millimeter connection plate welded to the wide-flange beam web. An L102x102x6.4 angle brace transfers a twenty-kilonewton load between the structural elements, with an alternate angle brace option indicated in dashed lines. Open web steel joists bear across the assembly with specified spacing and weld requirements.
