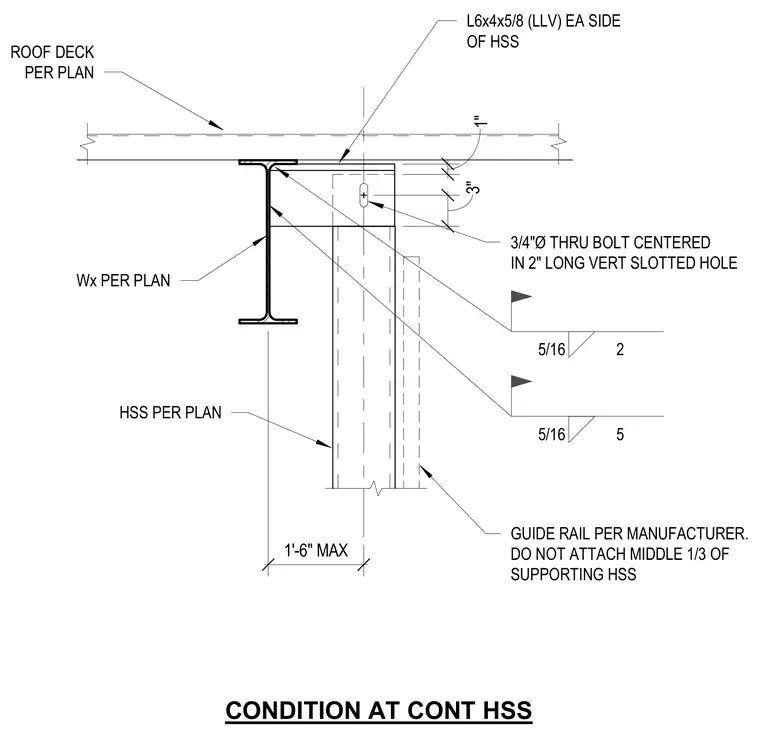

A guide rail connects to a continuous hollow structural section support located beneath a roof deck and wide-flange beam. The assembly uses an L6x4x5/8 angle on each side of the hollow structural section, secured with a three-quarter-inch diameter through bolt centered in a two-inch long vertical slotted hole. The guide rail attaches per the manufacturer's specifications while avoiding the middle one-third of the supporting hollow structural section. Fillet welds of five-sixteenths inch size connect the steel components as specified by the engineering design.
GUIDE RAIL PER MANUFACTURER. DO NOT ATTACH MIDDLE 1/3 OF SUPPORTING HSS 3/4"Ø THRU BOLT CENTERED IN 2" LONG VERT SLOTTED HOLE L6x4x5/8 (LLV) EA SIDE OF HSS ROOF DECK PER PLAN Wx PER PLAN HSS PER PLAN 5/16 2 5/16 5 1'-6" MAX 1" 3" CONDITION AT CONT HSS
