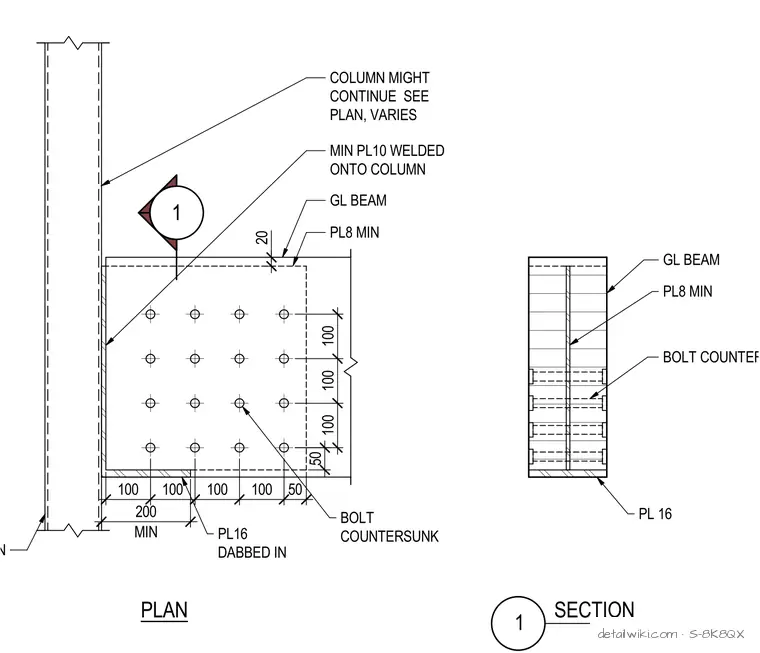

Text on the drawing
GL BEAM PL16 DABBED IN BOLT COUNTERSUNK GL BEAM PL8 MIN BOLT COUNTERSUNK 1 1 100 100 100 100 50 MIN 200 PL8 MIN HSS COLUMN MIN PL10 WELDED ONTO COLUMN PL 16 20 50 100 100 100 PLAN SECTION COLUMN MIGHT CONTINUE SEE PLAN, VARIES
