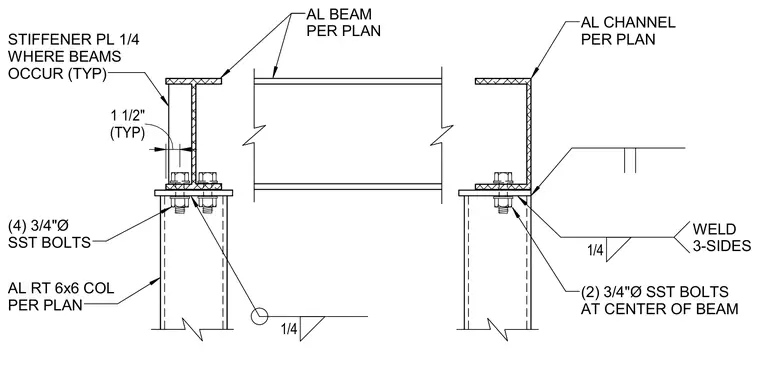

An aluminum rectangular tube column sized per plan supports framing members with a top connection secured by stainless steel bolts. An aluminum beam or channel sized per plan bears on the column top, fastened using two three-quarter-inch diameter stainless steel bolts at the center of the member. A one-quarter-inch thick stiffener plate is welded to the beam web where beams occur, detailed with a one-and-a-half-inch offset. Fillet welds sized at one-quarter inch are applied on three sides to secure the connection components.
AL RT 6x6 COL PER PLAN AL BEAM PER PLAN (2) 3/4"Ø SST BOLTS AT CENTER OF BEAM (4) 3/4"Ø SST BOLTS (TYP) 1 1/2" STIFFENER PL 1/4 WHERE BEAMS OCCUR (TYP) AL CHANNEL PER PLAN 1/4 WELD 3-SIDES 1/4
