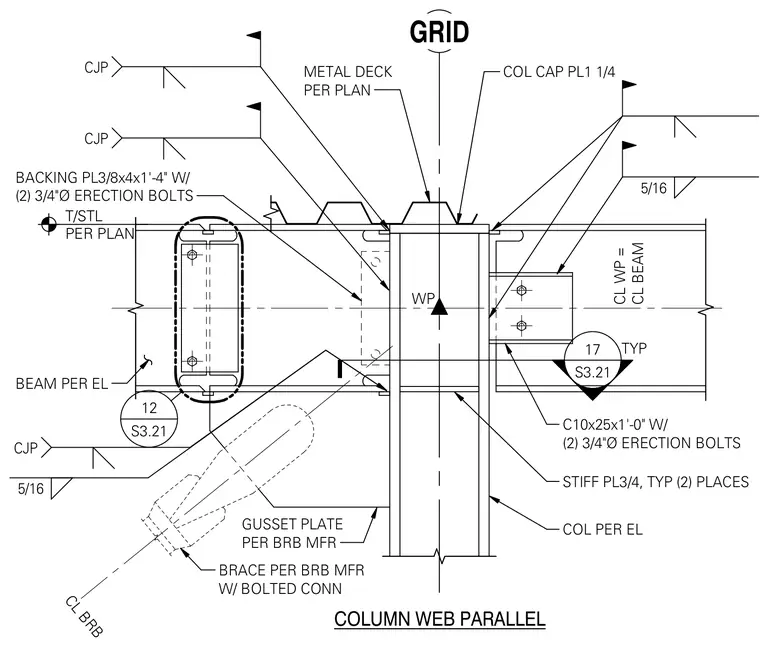

A buckling-restrained braced frame connection occurs at a steel column where the column web runs parallel to the framing. A gusset plate, sized per the buckling-restrained brace manufacturer, is welded to the column web with complete joint penetration welds. A backing plate measuring 3/8" x 4" x 1'-4" is secured with two 3/4" diameter erection bolts. Beams frame into the column utilizing a 10" channel section, measuring 25 lbs/ft by 1'-0" long, fastened with two 3/4" diameter erection bolts and 3/4" thick stiffener plates in two locations. The column cap plate is 1 1/4" thick, and a metal deck bears across the top of the assembly per plan.
GRID 5/16 CJP 5/16 BACKING PL3/8x4x1'-4" W/ (2) 3/4"Ø ERECTION BOLTS T/STL PER PLAN BEAM PER EL CL WP = CL BEAM WP S3.21 17 TYP C10x25x1'-0" W/ (2) 3/4"Ø ERECTION BOLTS STIFF PL3/4, TYP (2) PLACES COL PER EL GUSSET PLATE PER BRB MFR BRACE PER BRB MFR W/ BOLTED CONN CL BRB S3.21 12 COLUMN WEB PARALLEL CJP CJP METAL DECK PER PLAN COL CAP PL1 1/4
