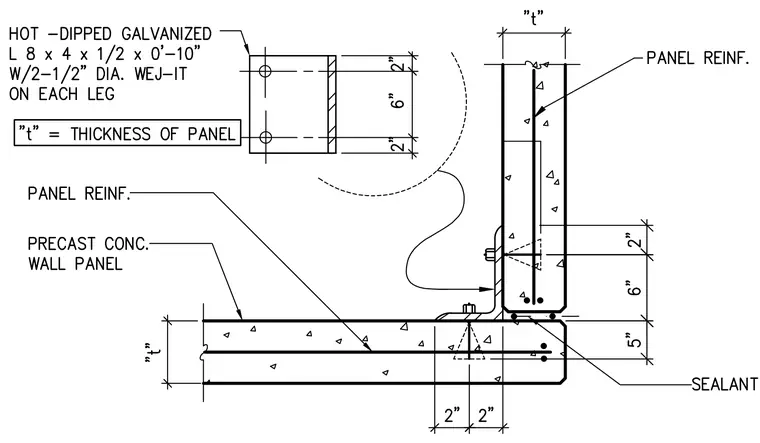

Precast concrete wall panels meet at a corner joint sealed with exterior joint sealant and reinforced internally with steel bars. The panels connect via hot-dipped galvanized angle measuring 8x4x1/2 inches by 0 feet 10 inches long. Each leg of the angle fastens to the respective precast concrete wall panel using two 1/2-inch diameter Wej-It expansion anchors. The angle fastens with specific edge distances and anchor spacings detailed on the plan.
