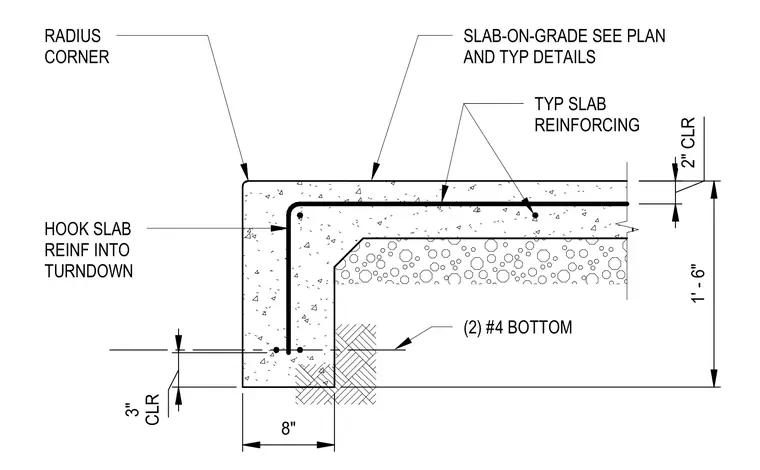

Turned down slab-on-grade edge measuring eight inches wide by one foot six inches deep. Slab reinforcement hooks into the turndown with two-inch top clearance. Two number four reinforcing bars sit at the bottom of the turndown with three-inch bottom clearance. The exterior slab corner features a radius finish.
