A davit socket pedestal is supported by a structural steel beam and column offset assembly. Three-eighths-inch thick stiffener plates are welded to the beam flanges and webs with one-quarter-inch fillet welds. Additional one-half-inch by four-inch plates are provided on each side, secured with one-quarter-inch fillet welds. A three-quarter-inch by twelve-inch square minimum base plate anchors the davit socket pedestal to the structural framing.

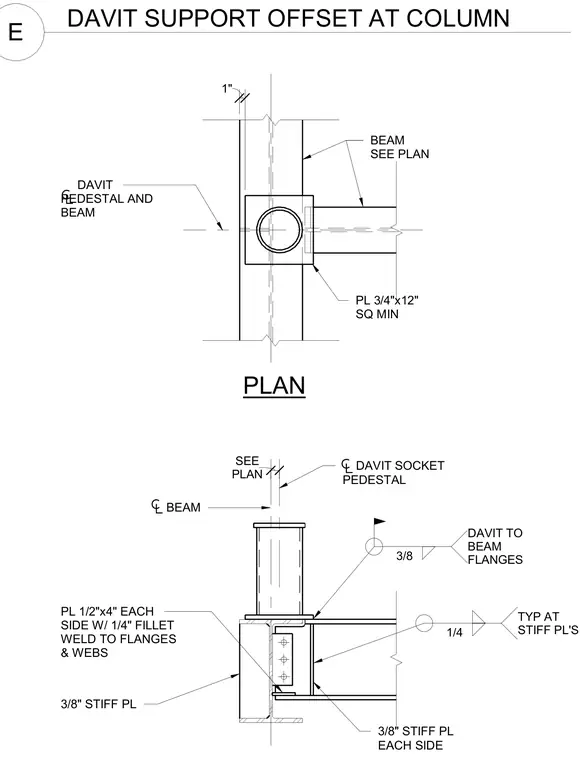

PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT PEDESTAL AND BEAM BEAM SEE PLAN DAVIT SUPPORT OFFSET AT COLUMN E PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1"
