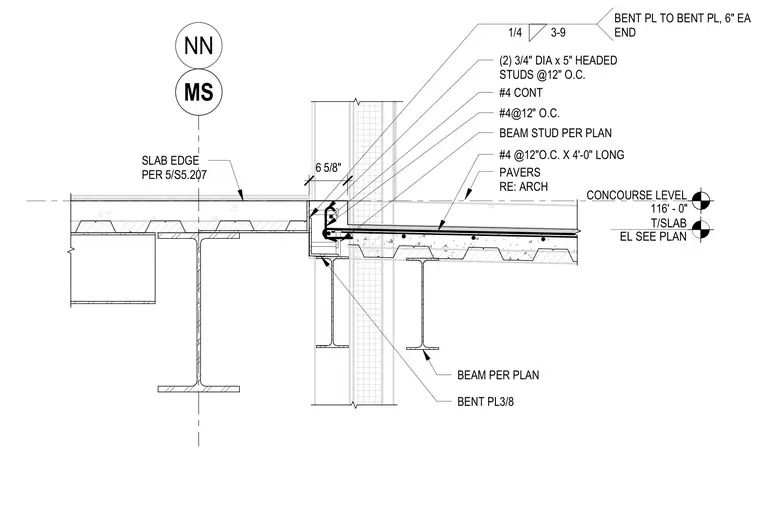

The assembly features a composite concrete slab supported by structural steel beams with a 6-5/8 inch slab edge transition. A 3/8-inch bent plate is secured with a 1/4-inch fillet weld at six inches each end. Two 3/4-inch diameter by 5-inch headed studs are spaced at 12 inches on center along the beam. Reinforcing includes continuous number 4 bars, number 4 bars at 12 inches on center, and 4-foot long number 4 bars at 12 inches on center. Pavers sit on the terrace level per architectural drawings.
CONCOURSE LEVEL 116' - 0" MS 6 5/8" SLAB EDGE PER 5/S5.207 BEAM PER PLAN BENT PL3/8 PAVERS RE: ARCH #4 @12"O.C. X 4'-0" LONG BEAM STUD PER PLAN #4 CONT (2) 3/4" DIA x 5" HEADED STUDS @12" O.C. 1/4 3-9 BENT PL TO BENT PL, 6" EA END T/SLAB EL SEE PLAN NN #4@12" O.C.
