Temperature and shrinkage reinforcement is placed within the concrete slab above a composite floor deck as specified per plan. The slab reinforcement sits above the profiled steel deck to control cracking from thermal and moisture changes.

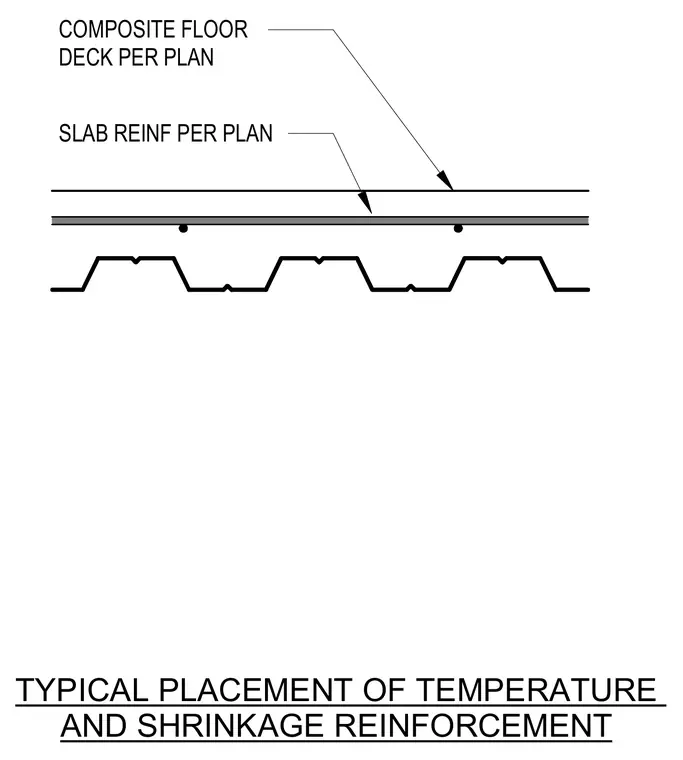

COMPOSITE FLOOR DECK PER PLAN SLAB REINF PER PLAN TYPICAL PLACEMENT OF TEMPERATURE AND SHRINKAGE REINFORCEMENT
