Reinforcing bars in concrete boundary elements, columns, beams, walls, and slabs are spliced using a Class "A" lap splice configuration. The overlapping bars require a minimum lap length of twelve times the bar diameter or twelve inches, whichever is greater, with a minimum clear spacing of one and a half inches or wired in contact.

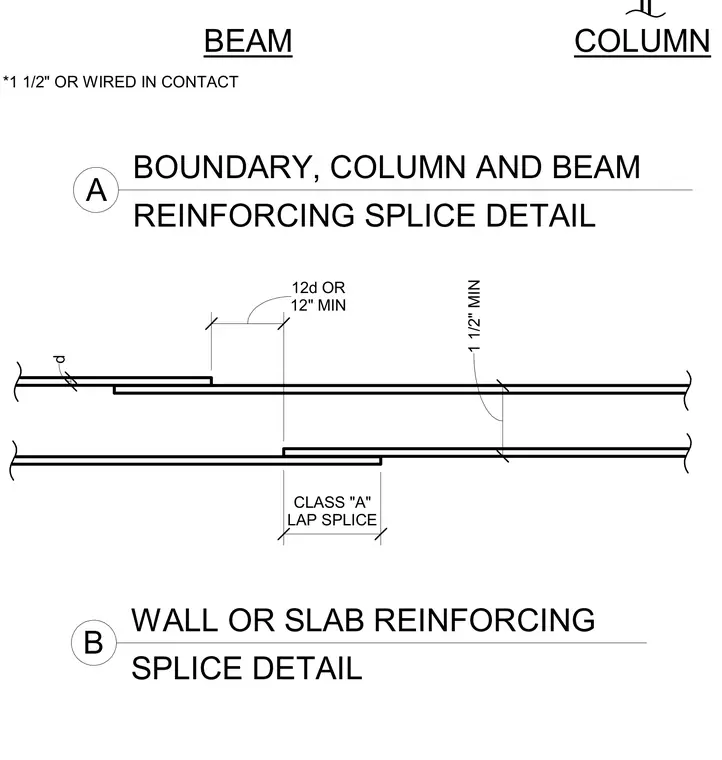

BOUNDARY, COLUMN AND BEAM REINFORCING SPLICE DETAIL SPLICE DETAIL WALL OR SLAB REINFORCING B A *1 1/2" OR WIRED IN CONTACT 12" MIN 12d OR d 1 1/2" MIN CLASS "A" LAP SPLICE BEAM COLUMN
