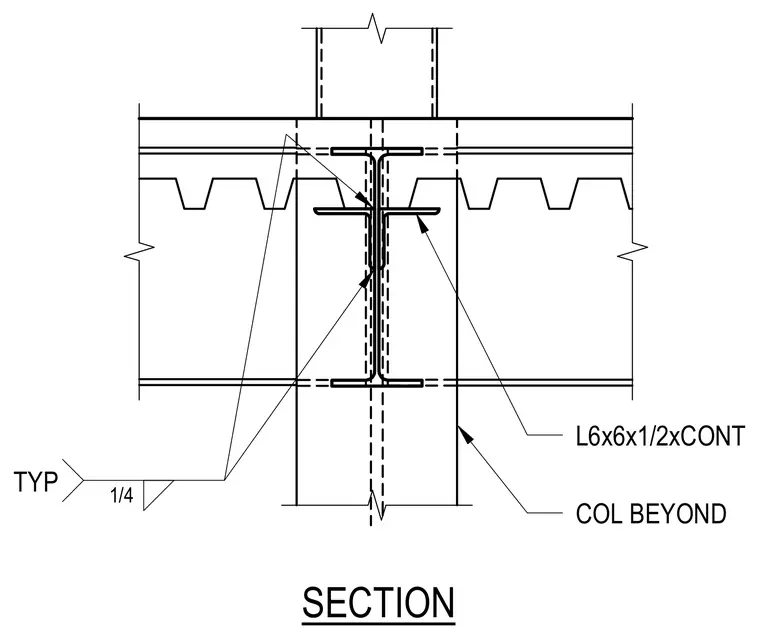

A continuous 6x6x1/2-inch structural steel angle connects adjacent framing elements with a 1/4-inch fillet weld typically applied at the joint. A continuous column is positioned beyond the primary connection assembly with intersecting metal deck floor framing. The components are detailed in section to indicate proper relative placement and weld size.
