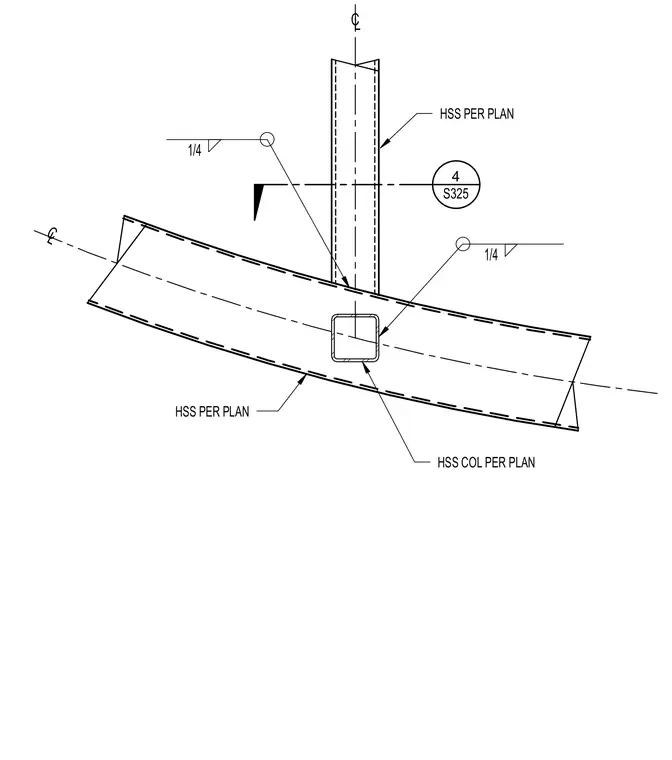

A vertical hollow structural section member connects to an inclined hollow structural section chord with sizing per plan. The connection is secured with quarter-inch fillet welds on both sides of the vertical member base. An additional hollow structural section column member aligns along the centerlines of the assembly.
