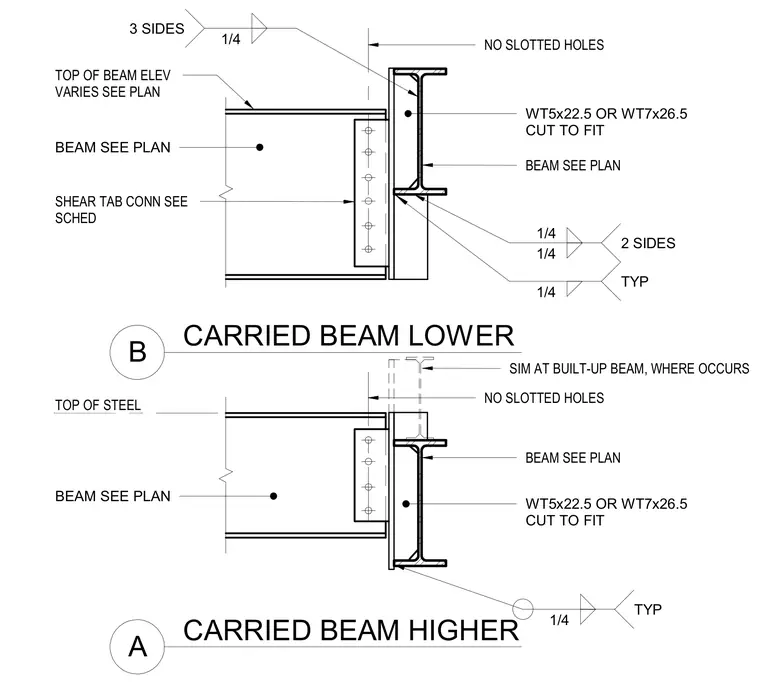

An offset structural steel beam connects to a supporting WT shape using a shear tab welded to the web. The supporting member consists of a WT5x22.5 or WT7x26.5 cut to fit as detailed on plan, welded with a quarter-inch fillet weld on two sides typical. The supported beam uses a shear tab connection sized per schedule with unslotted holes. Fillet welds of quarter-inch size are applied on three sides at the connection interface. Similar conditions apply at built-up beams where they occur, with provisions for carried beams at higher and lower elevations.
TOP OF BEAM ELEV VARIES SEE PLAN NO SLOTTED HOLES SHEAR TAB CONN SEE SCHED TOP OF STEEL WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 1/4 3 SIDES 1/4 TYP 1/4 1/4 2 SIDES 1/4 TYP CARRIED BEAM HIGHER A CARRIED BEAM LOWER B NO SLOTTED HOLES SIM AT BUILT-UP BEAM, WHERE OCCURS
