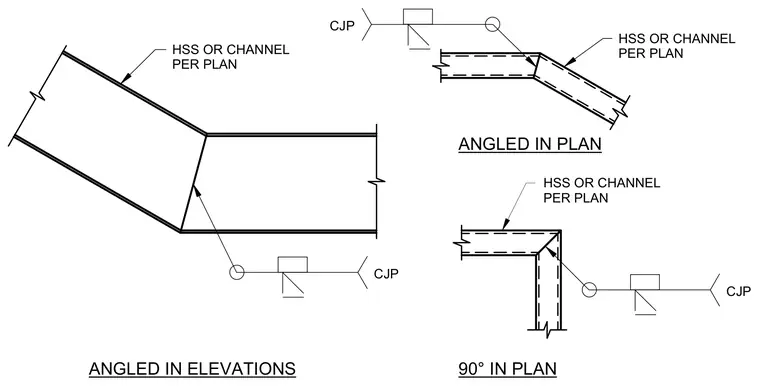

Hollow structural sections or channels are joined at angled elevations and in plan configurations. Complete joint penetration welds secure the connecting structural steel members at the mitered or angled junctions. The specific sizes for the hollow structural sections or channels are determined per plan.
HSS OR CHANNEL PER PLAN CJP ANGLED IN ELEVATIONS HSS OR CHANNEL PER PLAN HSS OR CHANNEL PER PLAN CJP CJP ANGLED IN PLAN 90° IN PLAN
