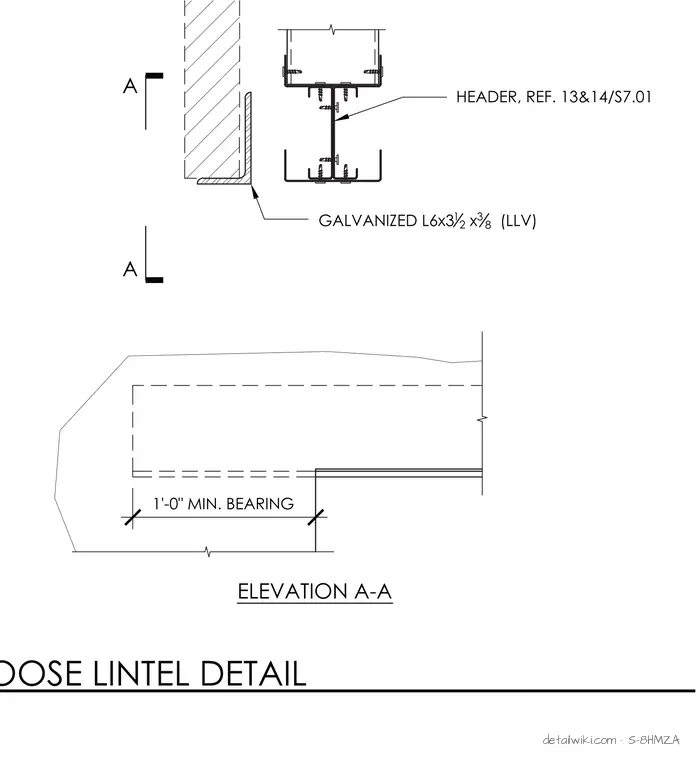

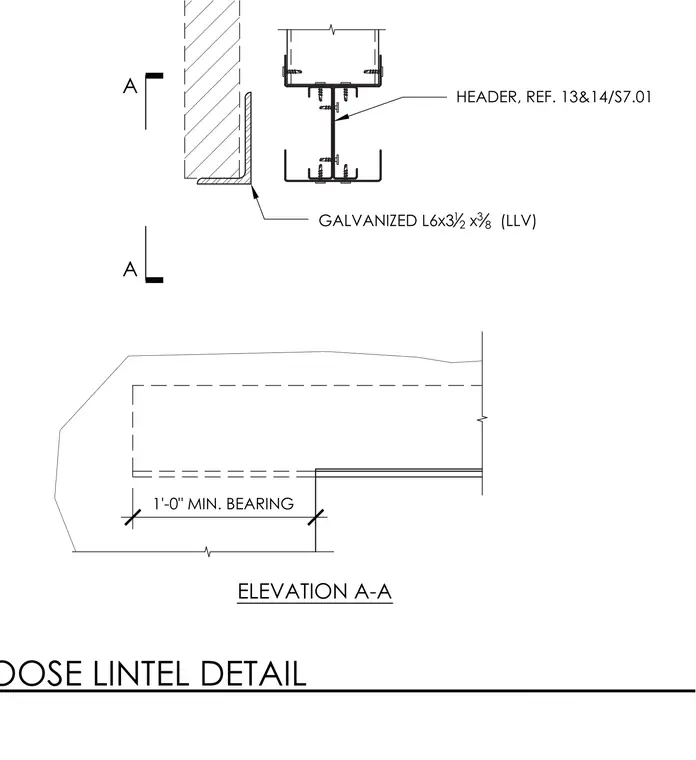

A galvanized angle lintel supports the masonry course above an opening, requiring a minimum of one foot of bearing length at each end. The angle shape is specified as L6x3-1/2x3/8 with the long leg vertical. The header assembly above is referenced to sheets S7.01. Elevation A-A provides the structural layout and dimensioning for the bearing condition.
1'-0" MIN. BEARING GALVANIZED L6x3 1 2 x 3 8 (LLV) HEADER, REF. 13&14/S7.01 TYP. LOOSE LINTEL DETAIL A A ELEVATION A-A
