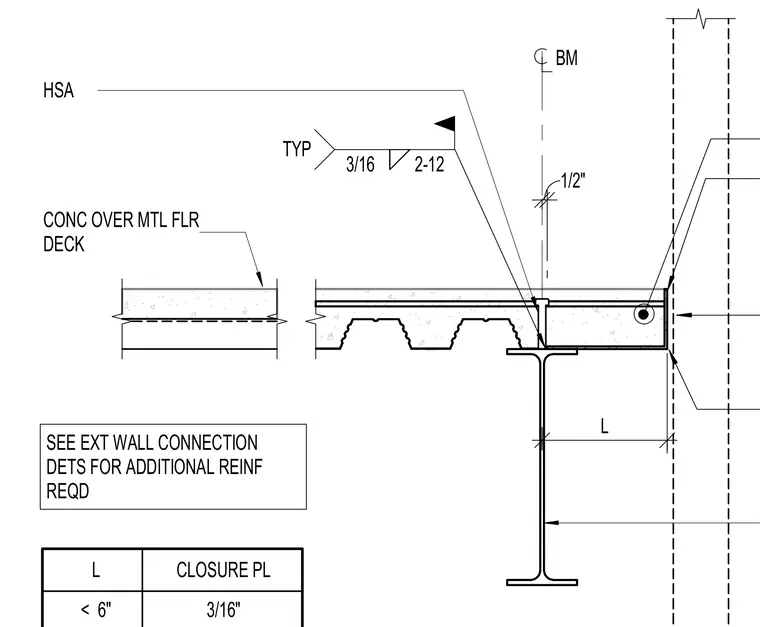

Concrete over metal floor deck bears on a structural steel beam at the perimeter of the floor plate. A closure plate spans the edge of the deck with a width determined by dimension L, supported by a three-sixteenths inch weld at twelve inches typical spacing. Additional reinforcement is specified on exterior wall connection details. A three-sixteenths inch plate is used for closure when L is less than six inches.
SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L < 6" CLOSURE PL 3/16" CONC OVER MTL FLR DECK L 1/2" HSA BM 3/16 2-12 TYP
