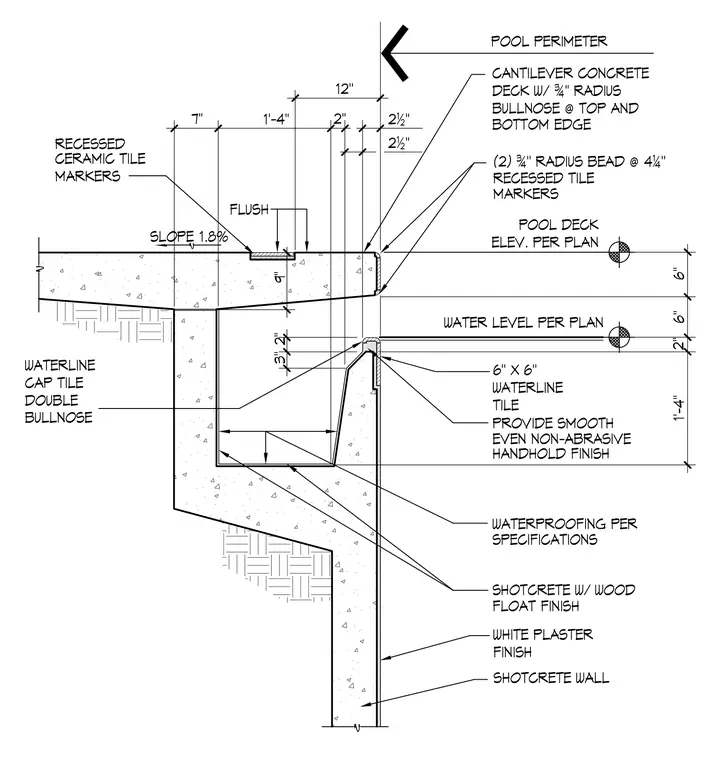

A cantilever concrete pool deck extends outward with a three-quarter-inch radius bullnose at both top and bottom edges, featuring two three-quarter-inch radius beads at four and one-quarter inches for recessed tile markers. Below the deck edge, a shotcrete wall features a recessed trough finished with a six-inch by six-inch waterline tile with a double bullnose and a smooth, even, non-abrasive handhold finish. The pool wall is coated with a white plaster finish over shotcrete with a wood float finish, backed by waterproofing applied per specifications. The pool deck surface slopes outward at one and eight-tenths percent and incorporates recessed ceramic tile markers flush with the concrete surface.
9'' SHOTCRETE WALL TILE WATERLINE 6'' X 6'' DOUBLE CAP TILE WATERLINE SLOPE 1.8% RECESSED TILE (2) ['' RADIUS BEAD @ 4|'' BULLNOSE @ TOP AND DECK W/ [" RADIUS CANTILEVER CONCRETE POOL PERIMETER 3'' 6'' 6'' 2" 1'-4'' 2\'' 1'-4'' 2'' 2\'' WATER LEVEL PER PLAN ELEV. PER PLAN POOL DECK CERAMIC TILE MARKERS 2'' 7'' WHITE PLASTER FINISH 12'' MARKERS BULLNOSE RECESSED SHOTCRETE W/ WOOD FLOAT FINISH BOTTOM EDGE PROVIDE SMOOTH EVEN NON-ABRASIVE HANDHOLD FINISH WATERPROOFING PER SPECIFICATIONS FLUSH
