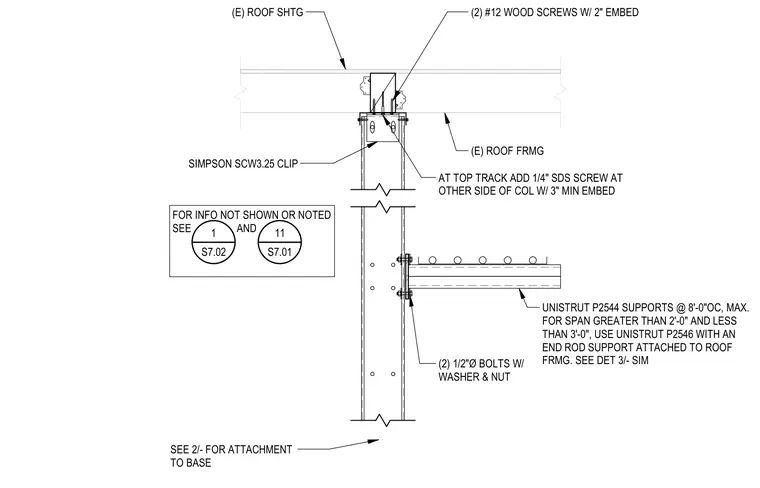

A cable tray assembly mounts to a full-height cold-formed steel stud connected overhead to existing roof framing. The top track connects to the existing roof sheathing and framing using a Simpson SCW3.25 clip fastened with two number twelve wood screws with a two-inch embedment, supplemented by a quarter-inch self-drilling screw at the opposite side of the column with a three-inch minimum embedment. The cable tray utilizes a Unistrut P2544 support spaced at eight feet on center, secured with two half-inch diameter bolts complete with washers and nuts. Spans greater than two feet and less than three feet require a Unistrut P2546 with an end rod support attached to the roof framing.
(2) 1/2"Ø BOLTS W/ WASHER & NUT UNISTRUT P2544 SUPPORTS @ 8'-0"OC, MAX. FOR SPAN GREATER THAN 2'-0" AND LESS THAN 3'-0", USE UNISTRUT P2546 WITH AN END ROD SUPPORT ATTACHED TO ROOF FRMG. SEE DET 3/- SIM (E) ROOF SHTG (E) ROOF FRMG AT TOP TRACK ADD 1/4" SDS SCREW AT OTHER SIDE OF COL W/ 3" MIN EMBED FOR INFO NOT SHOWN OR NOTED SEE AND 1 S7.02 SEE 2/- FOR ATTACHMENT TO BASE 11 S7.01 SIMPSON SCW3.25 CLIP (2) #12 WOOD SCREWS W/ 2" EMBED
