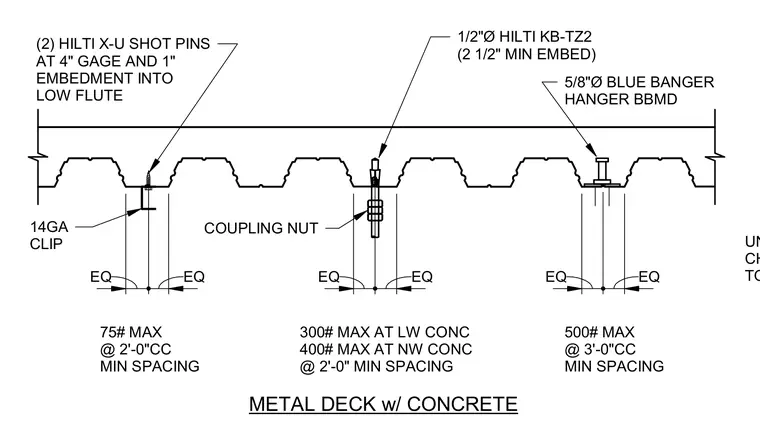

A concrete topping slab over a corrugated metal deck is secured using two Hilti X-U shot pins at a four-inch gauge with a one-inch embedment into the low flute alongside a fourteen-gauge clip. A half-inch diameter Hilti KB-TZ2 anchor with a two-and-a-half-inch minimum embedment connects to a coupling nut, supporting a maximum load of three hundred pounds at lightweight concrete or four hundred pounds at normal-weight concrete at a two-foot minimum spacing. A five-eighth-inch diameter Blue Banger Hanger BBMD embedded in the concrete supports up to five hundred pounds at a three-foot center-to-center minimum spacing. A Unistrut P1000 channel is screwed to the metal deck to support loads up to seventy-five pounds at a two-foot center-to-center minimum spacing.
(2) HILTI X-U SHOT PINS AT 4" GAGE AND 1" EMBEDMENT INTO LOW FLUTE 5/8"Ø BLUE BANGER HANGER BBMD 1/2"Ø HILTI KB-TZ2 (2 1/2" MIN EMBED) 300# MAX AT LW CONC 400# MAX AT NW CONC @ 2'-0" MIN SPACING 500# MAX @ 3'-0"CC MIN SPACING 75# MAX @ 2'-0"CC MIN SPACING METAL DECK w/ CONCRETE COUPLING NUT UNISTRUT P1000 CHANNEL SCREWED TO DECK 14GA CLIP EQ EQ EQ EQ EQ EQ
