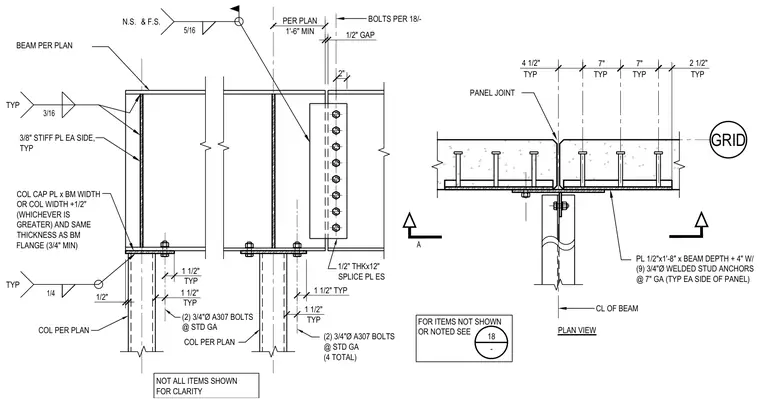

A steel beam frames into the top of a column, featuring a column cap plate sized to match the beam or column width with a minimum three-quarter-inch thickness. The column connects to the cap plate with quarter-inch welds, and three-eighths-inch stiffener plates are welded to each side of the beam web. A half-inch thick by twelve-inch splice plate connects the members with four three-quarter-inch diameter A307 bolts at standard gauge. The accompanying plan view shows a half-inch by one-foot eight-inch plate with nine three-quarter-inch diameter welded stud anchors at seven-inch gauge on each side of the panel. A half-inch gap is maintained at the panel joint aligned with the column grid.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) TYP TYP TYP TYP PLAN VIEW A BOLTS PER 18/- PER PLAN 1'-6" MIN 1 1/2" TYP 1/2" 1 1/2" TYP 1/2" GAP 1 1/2" TYP 1 1/2" TYP 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH +1/2" (WHICHEVER IS GREATER) AND SAME THICKNESS AS BM FLANGE (3/4" MIN) NOT ALL ITEMS SHOWN FOR CLARITY (2) 3/4"Ø A307 BOLTS @ STD GA (2) 3/4"Ø A307 BOLTS @ STD GA (4 TOTAL) 1/2" THKx12" SPLICE PL ES COL PER PLAN COL PER PLAN BEAM PER PLAN 2" 3/16 TYP 5/16 N.S. & F.S. 1/4 TYP FOR ITEMS NOT SHOWN OR NOTED SEE 18 -
