Structural · S-8GX49

Steel Shim and Framing Detail at Joist Bearing

Materials

Elements

About this detail

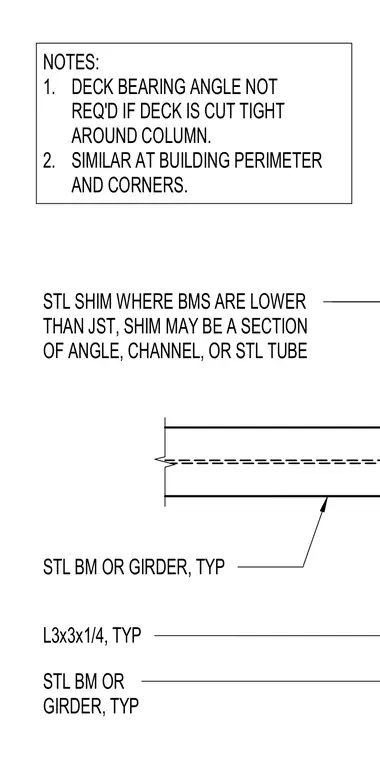

Steel shim plates are positioned where steel beams or girders are lower than joists, with the shim formed from a section of angle, channel, or steel tube. A typical L3x3x1/4 angle connects the steel beam or girder. A deck bearing angle is omitted if the deck is cut tight around the column, and this configuration applies similarly at the building perimeter and corners.
