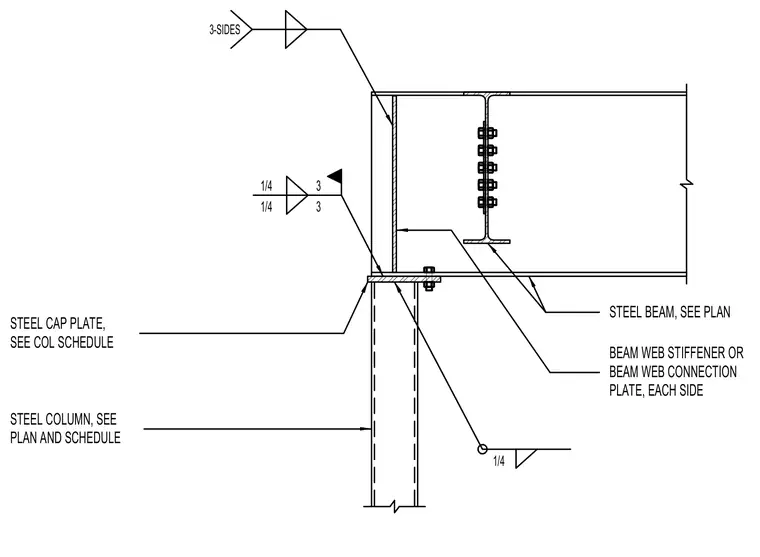

A steel beam bears on a steel column fitted with a steel cap plate sized per the column schedule. The beam web connects to a beam web connection plate on each side using five vertical bolts. A stiffener plate is welded to the beam web with one-quarter inch fillet welds on three sides.
3-SIDES 1/4 1/4 1/4 3 3 STEEL CAP PLATE, SEE COL SCHEDULE BEAM WEB STIFFENER OR BEAM WEB CONNECTION PLATE, EACH SIDE STEEL BEAM, SEE PLAN STEEL COLUMN, SEE PLAN AND SCHEDULE
