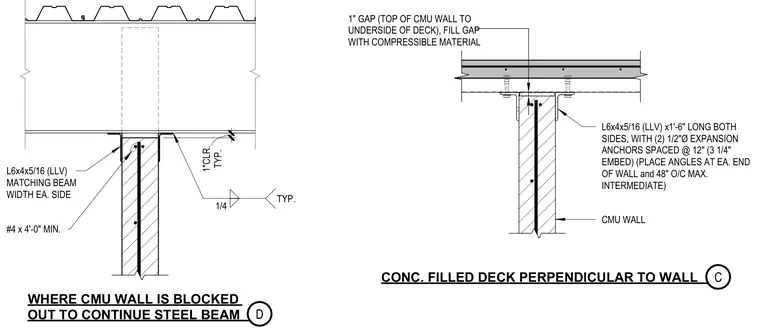

A concrete-filled metal deck runs perpendicular to a concrete masonry unit wall, maintaining a one-inch clearance from the underside of the deck. A one-inch gap between the top of the concrete masonry unit wall and the underside of the deck is filled with a compressible material. Steel angles measuring L6x4x5/16 with long legs vertical and matching the beam width are placed on each side, secured with two one-half-inch diameter expansion anchors with three and one-quarter-inch embedment spaced at twelve inches on center. These angles are placed at each end of the wall and at forty-eight inches on center maximum intermediately. Vertical reinforcing bars measuring number four by four feet minimum extend through the concrete masonry unit wall cores.
WHERE CMU WALL IS BLOCKED OUT TO CONTINUE STEEL BEAM 1" GAP (TOP OF CMU WALL TO UNDERSIDE OF DECK), FILL GAP WITH COMPRESSIBLE MATERIAL L6x4x5/16 (LLV) x1'-6" LONG BOTH SIDES, WITH (2) 1/2"Ø EXPANSION ANCHORS SPACED @ 12" (3 1/4" EMBED) (PLACE ANGLES AT EA. END OF WALL and 48" O/C MAX. INTERMEDIATE) CMU WALL L6x4x5/16 (LLV) MATCHING BEAM WIDTH EA. SIDE #4 x 4'-0" MIN. CONC. FILLED DECK PERPENDICULAR TO WALL TYP. 1"CLR. 1/4 TYP. D C
