Wide-flange beams frame into the web of a wide-flange column using connection plates sized per schedule with three-quarter-inch fillet welds top and bottom. A three-quarter-inch plate lines up with the edge of the beam flange and clears the column 'k' distance typically. Five-eighths-inch web plates are welded opposite the connection plate with half-inch and three-quarter-inch fillet welds as indicated. Bolt patterns are spaced at three inches typical with one-and-a-half-inch edge distances.

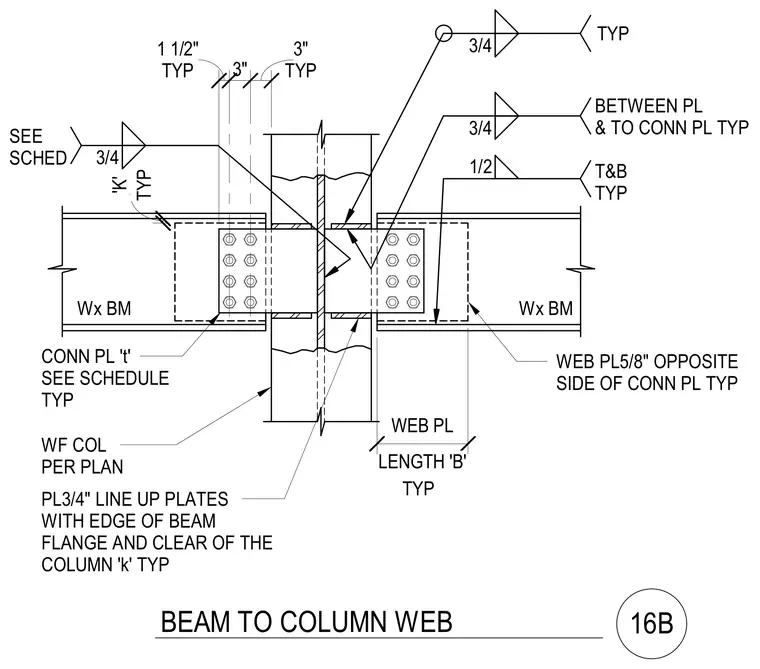

WF COL PER PLAN SEE SCHED BETWEEN PL & TO CONN PL TYP CONN PL 't' SEE SCHEDULE TYP PL3/4" LINE UP PLATES WITH EDGE OF BEAM FLANGE AND CLEAR OF THE COLUMN 'k' TYP 3/4 3/4 TYP 3/4 Wx BM WEB PL5/8" OPPOSITE SIDE OF CONN PL TYP LENGTH 'B' WEB PL Wx BM TYP 3" 3" TYP 1 1/2" TYP T&B TYP 1/2 TYP 'K' BEAM TO COLUMN WEB 16B
